Sullair 02250144-311 Pressure Sensor for Screw Air Compressors
  • Nombre
  • Nombre
  • Nombre
  • Nombre

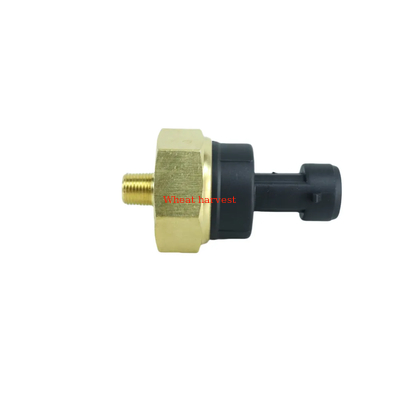

Sullair 02250144-311 Pressure Sensor for Screw Air Compressors

Cuota De Producción: 1
Precio: $51/pieces
Embalaje Estándar: Caja de cartón
Período De Entrega: 15-20 días de trabajo
Método De Pago: T/T
Capacidad De Suministro: 100-1000
Información detallada
Descripción del producto
Información detallada
Lugar de origen
PORCELANA
Nombre de la marca
Sullair
Número de modelo
02250144-311
Resaltar:

Sullair air compressor pressure sensor

,

Screw air compressor pressure sensor

,

Sullair 02250144-311 pressure sensor

Descripción del producto
Sullair 02250144-311 Pressure Sensor for Screw Air Compressors
Pressure Sensor Product Overview

A pressure sensor is a transducer that converts fluid or gas pressure into an electrical signal (e.g., voltage, current, digital output) for monitoring, control, and safety in industrial, automotive, medical, and aerospace systems. It ensures precise pressure management in real-time, preventing equipment failure and optimizing processes.

Key Functions
  • Pressure Monitoring - Measures absolute, gauge, or differential pressure with high accuracy.
  • Process Control - Maintains optimal pressure in systems like HVAC, hydraulics, and manufacturing.
  • Safety Alerts - Triggers shutdowns during overpressure/underpressure events.
  • Data Logging - Integrates with SCADA/IoT systems for predictive maintenance.
Common Sensor Technologies
Type Operating Principle & Applications Pros & Cons
Strain Gauge Measures deformation of a diaphragm via piezoresistive elements. ✅ Robust, cost-effective
❌ Sensitive to temperature drift
Capacitive Detects capacitance changes between diaphragms/electrodes. ✅ High accuracy, low power
❌ Complex signal conditioning
Piezoelectric Generates charge from pressure-induced crystal strain. ✅ Dynamic pressure sensing
❌ Unsuitable for static pressure
Optical Uses fiber Bragg gratings (FBG) to measure wavelength shift. ✅ EMI-immune, explosive environments
❌ High cost
MEMS (Micro-Electro-Mechanical) Miniaturized silicon-based sensors. ✅ Compact, low-cost, digital output
❌ Limited high-pressure range
Parameters Table
Parameter Description Common Values/Options
Pressure Range Minimum to maximum measurable pressure. 0-10 psi to 0-100,000 psi (0-69 kPa to 0-690 MPa)
Pressure Type Absolute (ref. vacuum), Gauge (ref. atm.), Differential (Δ between ports). Gauge (most common), Absolute, Sealed Gauge
Accuracy Max. error (% full scale span). ±0.1% FS (high-end), ±0.5% FS (industrial)
Output Signal Electrical interface. 4-20mA (industry std.), 0-5/10V, I²C, SPI, RS-485
Operating Temperature Ambient limits for reliable performance. -40°C to +125°C (standard), -196°C to +400°C (specialized)
Long-Term Stability Annual drift (% FS). ±0.1% FS/year (precision), ±0.5% FS/year (general)
Overpressure Limit Max. pressure without damage (typically 2-3x full scale). 2x FS (standard), 5x FS (ruggedized)
Media Compatibility Fluid/gas suitability. Oil, water, air, fuels, corrosive chemicals
Wetted Materials Parts contacting media. 316L stainless steel, Hastelloy, ceramic, silicon
Response Time Time to reach 90% of final reading. 1-10 ms (MEMS), 10-100 ms (strain gauge)
IP Rating Ingress protection. IP65 (dust/water jets), IP68 (submersion)
Certifications Safety/industry standards. ATEX (explosive), CE, RoHS, ASME B40.100
Applications
  • Industrial Automation: Hydraulic/pneumatic system control.
  • Oil & Gas: Pipeline monitoring, wellhead pressure.
  • Medical: Ventilators, blood pressure monitors.
  • Automotive: Turbochargers, fuel/brake systems, EV batteries.
  • Aerospace: Cabin pressure, fuel tanks.
  • HVAC: Duct pressure, chiller optimization.
Selection Guidelines
  1. Pressure Type & Range:
    • Use gauge sensors for atmospheric reference (e.g., tire pressure).
    • Choose absolute sensors for vacuum-referenced apps (e.g., altimeters).
    • Ensure max. operating pressure is ≤75% of sensor's full scale.
  2. Environment:
    • Select 316L stainless steel for corrosive media; ceramic for abrasive slurries.
    • Use IP68 for subsea/washdown areas; ATEX/IECEx for explosive atmospheres.
  3. Performance Needs:
    • Prioritize ±0.1% accuracy for critical processes (e.g., pharmaceutical reactors).
    • Opt for 4-20mA output for noise immunity in industrial settings.
  4. Ruggedness:
    • Specify high overpressure limits (5x FS) for pulsating systems (e.g., pumps).
    • Minimize thermal errors with built-in compensation.
Critical Installation Notes
  • Mounting: Avoid mechanical stress on sensor housing.
  • Pulsation Dampening: Use snubbers in high-vibration systems.
  • Sealing: Match O-ring material (e.g., Viton™, EPDM) to fluid/temperature.
  • Calibration: Perform annual traceable calibration per ISO 17025.
Warning:
  • Media incompatibility can cause leaks or sensor failure. Verify chemical resistance using Compatibility Guides.
  • Exceeding overpressure limits voids warranties and risks catastrophic failure.
Advanced Variants
  • Multivariable Sensors: Measure pressure + temperature/flow (e.g., DP flowmeters).
  • Wireless Sensors: Battery-powered with LoRaWAN/NB-IoT for remote monitoring.
  • Sanitary Sensors: Tri-Clamp fittings + electropolished surfaces for food/pharma.
Always consult OEM datasheets for derating at extreme temperatures/vibrations. Test in actual operating conditions.
